Scan Sessions

Samooha controls scan sessions through the Geoplan API. No Scan Sessions UI is required for this integration.

Connection

Section titled “Connection”
Item Value
Staging base URL https://api-stg-sling.rgoc.com.ph/api/v1
Authentication x-api-key: <api-key>
Content type application/json
Contract rate limit 60 requests per 5 minutes
Scan activities Use the four fixed IDs in Scan Activities

Samooha flow rules

Section titled “Samooha flow rules”
Flow Activity transactionReference Trigger Agreed result to Samooha
Goods Receipt GOODS_RECEIPT Purchase Invoice Document creation SKU and scanned quantity
Goods Delivery GOODS_DELIVERY Sales Order Confirmation or posting HTTP acknowledgement only
Customer Returns CUSTOMER_RETURNS Credit Note Confirmation or posting HTTP acknowledgement only
Vendor Returns VENDOR_RETURNS Debit Note Confirmation or posting HTTP acknowledgement only

For the last three flows, the exact Samooha trigger is not yet settled between Confirm and Post.

Send transactionReference on every Samooha session. The current backend accepts it as optional and does not enforce uniqueness.

Session lifecycle

Section titled “Session lifecycle”

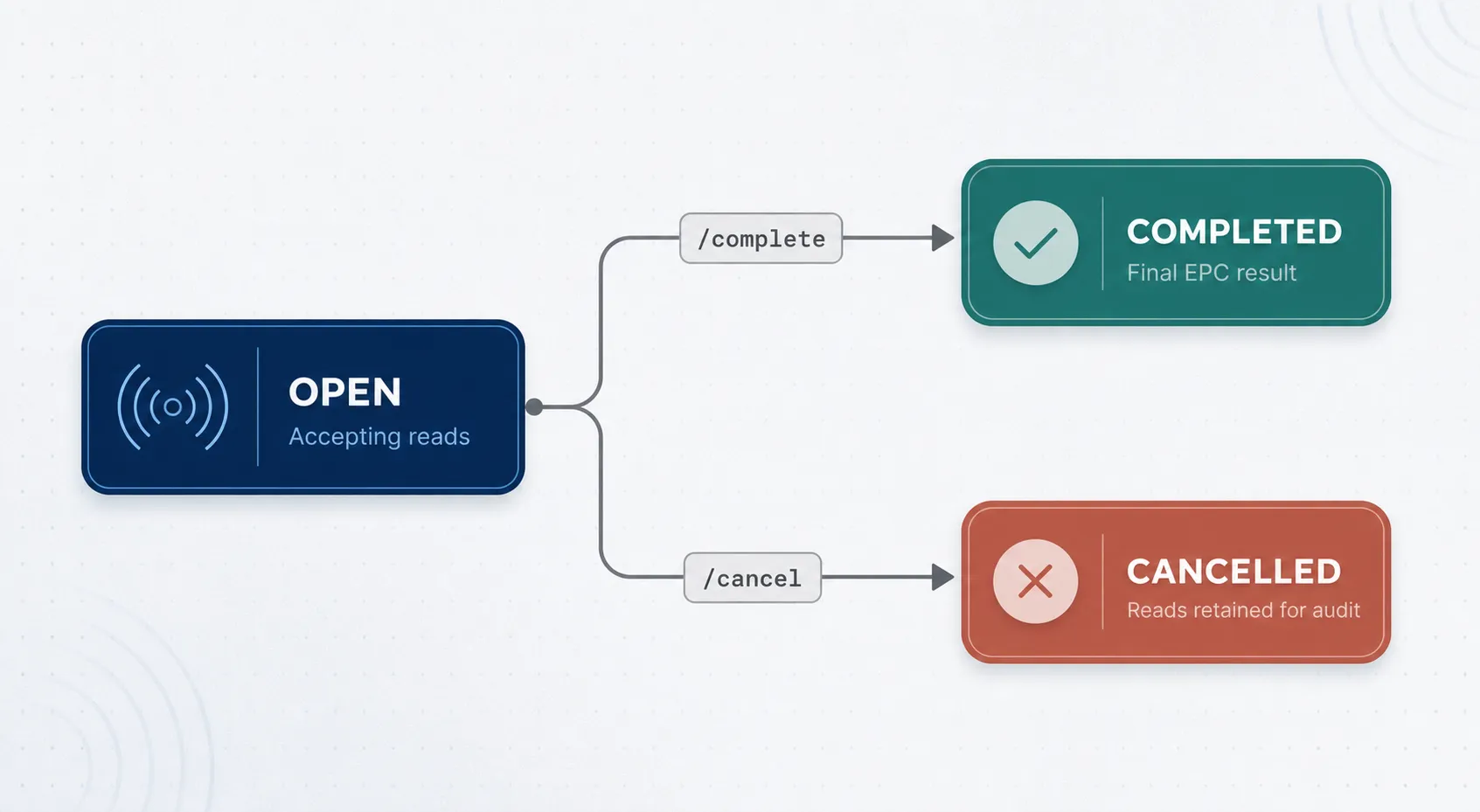

Scan session lifecycle showing OPEN, COMPLETED, and CANCELLED states

Status Rule
OPEN Accepts EPC reads. Initial state.
COMPLETED Terminal. Set by /complete.
CANCELLED Terminal. Set by /cancel. Captured reads remain for audit.

Only an OPEN session can accept reads, complete, or cancel. Repeating a terminal action returns 409.

Current API sequence

Section titled “Current API sequence”

  1. Open the session. Samooha sends the fixed activity ID, document reference, and current reader identifier.

  2. Capture reads. The Geoplan-managed reader or bridge sends EPC batches to /reads. Samooha does not call this endpoint.

  3. Monitor the session. Samooha polls the session by ID. The current response contains the live deduplicated EPC list.

  4. Finish the session. Samooha calls /complete for a successful scan or /cancel for an abandoned scan.

Method Path Caller Result
POST /epc-scan-processing/sessions Samooha Create an OPEN session. Returns 201.
GET /epc-scan-processing/sessions/{sessionId} Samooha Read one session, including EPCs.
GET /epc-scan-processing/sessions Samooha List sessions without EPC arrays.
POST /epc-scan-processing/sessions/{sessionId}/complete Samooha Set COMPLETED.
POST /epc-scan-processing/sessions/{sessionId}/cancel Samooha Set CANCELLED.
POST /epc-scan-processing/sessions/{sessionId}/reads Geoplan reader or bridge Append and deduplicate EPC reads.

Open a session

Section titled “Open a session”
POST https://api-stg-sling.rgoc.com.ph/api/v1/epc-scan-processing/sessions
x-api-key: <api-key>
Content-Type: application/json
Field Current API Samooha rule
scanActivityId Required UUID. Must reference an active activity. Use the fixed ID for the flow.
transactionReference Optional string, maximum 120 characters. Always send the flow-specific document reference.
deviceId Optional string, maximum 120 characters. Final reader selection rule is pending.

Request shape for Goods Receipt:

{
  "scanActivityId": "abf45262-67d9-49fb-9e18-7ae0482455b9",
  "transactionReference": "<purchase-invoice>",
  "deviceId": "<reader-id>"
}

Current 201 response shape:

{
  "statusCode": 201,
  "message": "Success",
  "data": {
    "id": "<session-id>",
    "transactionReference": "<purchase-invoice>",
    "deviceId": "<reader-id>",
    "scanActivity": {
      "id": "abf45262-67d9-49fb-9e18-7ae0482455b9",
      "code": "GOODS_RECEIPT",
      "name": "Goods Receipt"
    },
    "status": "OPEN",
    "startedAt": "<ISO-8601 timestamp>",
    "completedAt": null,
    "uniqueCount": 0,
    "epcs": []
  }
}

Monitor a session

Section titled “Monitor a session”
GET https://api-stg-sling.rgoc.com.ph/api/v1/epc-scan-processing/sessions/<session-id>
x-api-key: <api-key>
Response field Type Current behavior
id UUID Session identifier.
transactionReference string or null Samooha document reference.
deviceId string or null Reader identifier supplied when the session opened.
scanActivity object Activity id, code, and name.
status enum OPEN, COMPLETED, or CANCELLED.
startedAt ISO-8601 Session creation time.
completedAt ISO-8601 or null Set only when completed.
uniqueCount integer Number of distinct EPCs.
epcs string array Trimmed, upper-cased, deduplicated, and sorted.

The current endpoint exposes EPCs. The agreed Samooha Goods Receipt result is SKU and quantity. Samooha must not store EPCs.

List sessions

Section titled “List sessions”
GET https://api-stg-sling.rgoc.com.ph/api/v1/epc-scan-processing/sessions?status=OPEN&page=1&limit=10
x-api-key: <api-key>
Query Type Default Rule
status enum None OPEN, COMPLETED, or CANCELLED.
deviceId string None Exact match.
scanActivityId UUID None Filter by one activity.
page integer 1 Minimum 1.
limit integer 10 1 to 50.

List items include uniqueCount but omit epcs. Fetch one session for its reads.

Complete or cancel

Section titled “Complete or cancel”

Both operations have no request body.

POST https://api-stg-sling.rgoc.com.ph/api/v1/epc-scan-processing/sessions/<session-id>/complete
x-api-key: <api-key>
POST https://api-stg-sling.rgoc.com.ph/api/v1/epc-scan-processing/sessions/<session-id>/cancel
x-api-key: <api-key>

/complete sets completedAt. /cancel leaves completedAt as null. Both return the full current session shape.

Retry and duplicate rules

Section titled “Retry and duplicate rules”
Rule Agreed behavior Current backend
Goods Receipt transmission failure Up to three automatic retries, then a manual retry. No document cancellation. Not implemented.
Completed duplicate Reject a resend with the same document reference. Not implemented.
Open duplicate May overwrite the incomplete transaction. Not implemented.
Manual resend Show a confirmation before resending. Not implemented.

Retry delay, qualifying failures, and retry coverage for the other three flows are not final.

Errors

Section titled “Errors”
Status Current session behavior
400 Invalid request, inactive activity, or no usable EPC value.
401 Missing or invalid API key.
404 Activity or session not found.
409 Session action requires OPEN, but the session is terminal.
429 Rate limit exceeded.

See Errors & Retries for the shared HTTP status list.

Draft limitations

Section titled “Draft limitations”
Area Current state Required before final publication
Samooha transaction intake No Goods Receipt, Goods Delivery, Customer Return, or Vendor Return document endpoints. Final POST contracts and schemas.
Goods Receipt result Completion returns EPC values. Return SKU and quantity without EPCs.
Reader control deviceId is optional text. No reader validation, start, stop, offline, or busy handling. Final reader behavior.
Duplicate control transactionReference is not unique. Enforce the agreed completed and open duplicate rules.
Session limits No timeout or per-reader concurrency rule. Final timeout and concurrency behavior.
Goods Receipt lock No unlock rule for a session that never completes. Final unlock authority and audit behavior.
Unknown SKU or EPC No final Samooha handling rule. Use mapped UAT values until settled.
Rate enforcement Backend uses 100 requests per 60 seconds. Change to 60 requests per 5 minutes.

The examples above show the current schema with placeholders. They are not captured staging transactions. Replace them with verified UAT requests and responses before final publication.
